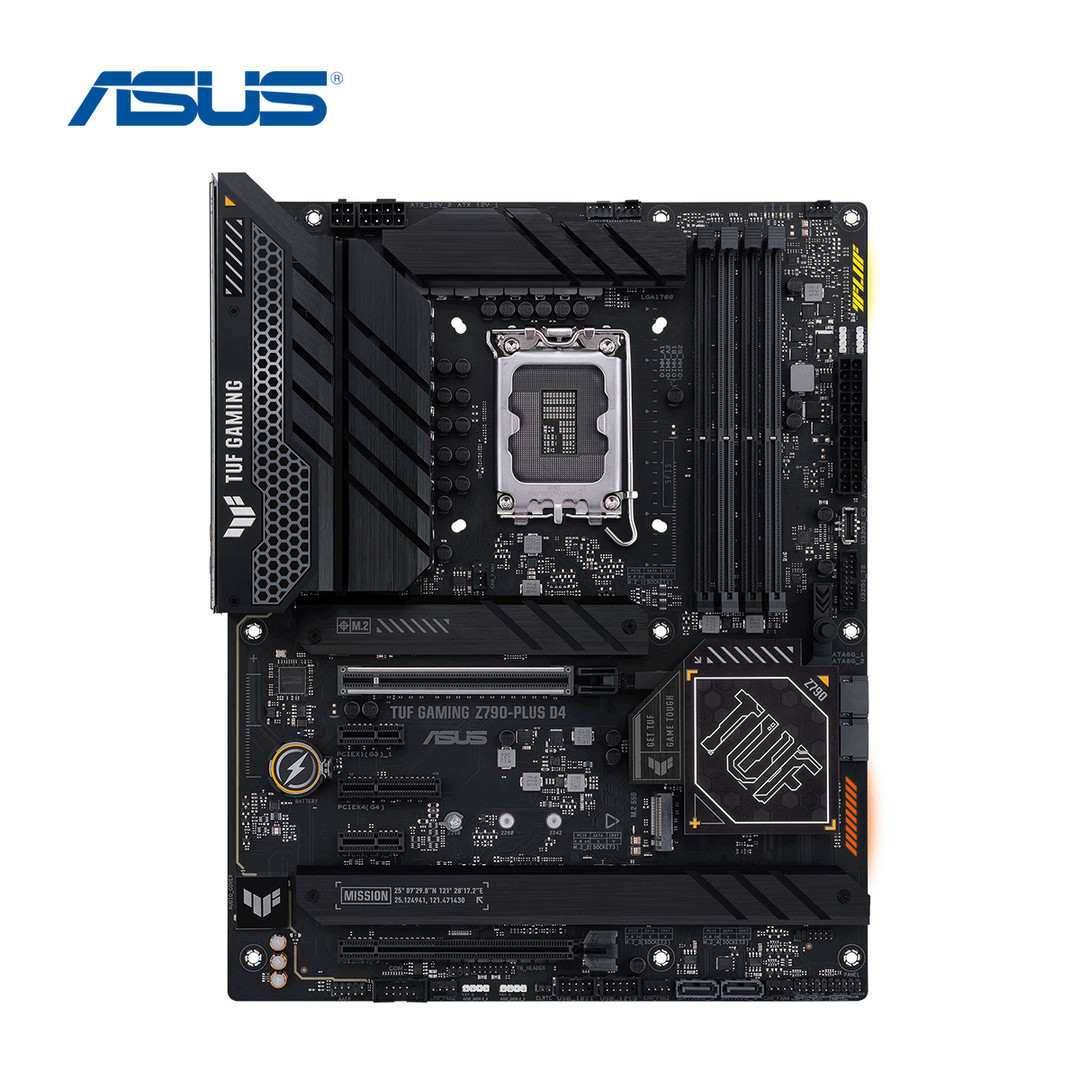

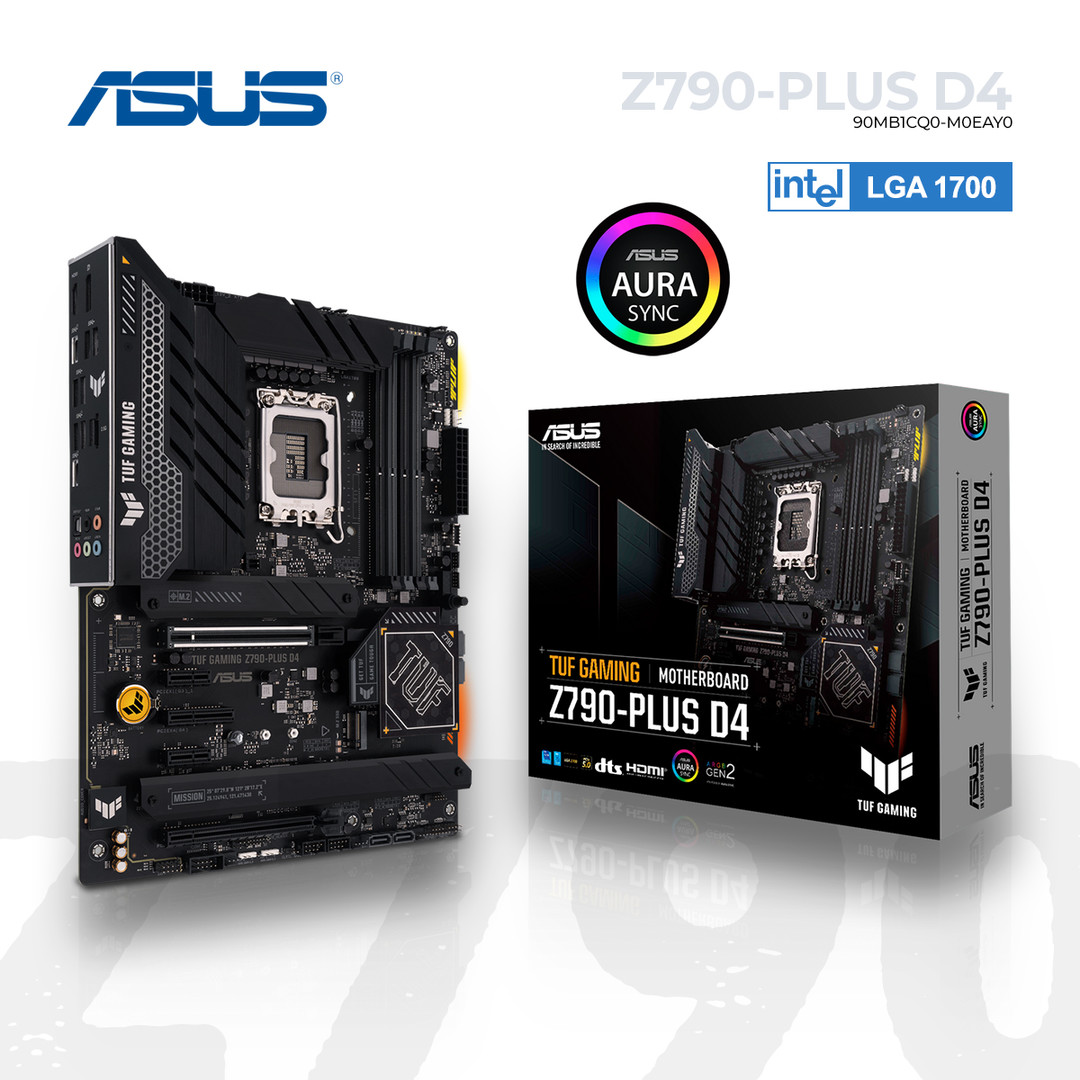

დედა დაფა ASUS TUF GAMING Z790-PLUS D4 s1700 Z790 4xDDR4 M.2 HDMI-DP ATX
პროდუქტის აღწერა :
• ბრენდი: ASUS
• სერია: TUF GAMING
• მოდელი: Z790-PLUS D4 (90MB1CQ0-M0EAY0)
ძირითადი მახასიათებლები
• პროცესორის ბუდე (Socket): LGA1700
• პროცესორის ტიპის მხარდაჭერა: (13 / 12 th Generation)
• ფორმფაქტორი: ATX
ჩიპსეტი
• ჩრდილოეთ ხიდი: Intel Z690
ოპერატიული მეხსიერება
• მეხსიერების ტიპი: DDR4 (DIMM)
• მეხსიერების სლოტების რაოდენობა: 4 X
• მეხსიერების მაქსიმალური მხარდაჭერა: 128 GB
• მეხსიერების სიხშის მხარდაჭერა: DDR4 5333(OC) / 5133(OC) / 5066(OC) / 5000(OC) / 4800(OC) / 4700(OC) / 4600(OC) / 4500(OC) / 4400(OC) / 4266(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3733(OC) /3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200/3000/2933/2800/2666/2400/2133 Non-ECC, Un-buffered Memory*
• ორარხიანი მეხსიერების არქიტექტურა
• Intel® Extreme Memory Profile (XMP)
• OptiMem II
გაფართოების სლოტები
Intel® 13th & 12th Gen Processors*
• 1 x PCIe 5.0 x16 slot
Intel® Z690 Chipset**
1 x PCIe 4.0 x16 slot (supports x4 mode)
1 x PCIe 4.0 x4 slot
2 x PCIe 3.0 x1 slots
* Please check the PCIe bifurcation table at the support site (https://www.asus.com/support/FAQ/1037507/).
- To ensure compatibility of the device installed, please refer to https://www.asus.com/support/ for the list of supported peripherals.
M2
Intel® 13th & 12th Gen Processors
• 1 x M.2_1 slot (Key M), type 2242/2260/2280/22110
- Intel® 13th & 12th Gen processors support PCIe 4.0 x4 mode
Intel® Z690 Chipset**
M.2_2 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 mode)
M.2_3 slot (Key M), type 2242/2260/2280/22110 (supports PCIe 4.0 x4 mode)
M.2_4 slot (Key M), type 2242/2260/2280 (supports PCIe 4.0 x4 & SATA modes)
* Intel® Rapid Storage Technology supports PCIe RAID 0/1/5/10, SATA RAID 0/1/5/10.
SATA კონტროლერი
• 4 x SATA 6Gb/s connector port(s)
ქსელი
• 1 x Realtek 2.5Gb Ethernet
TUF LANGuard
აუდიო
• დეკოდერი (Codec): Realtek S1220A 7.1 Surround Sound High Definition Audio CODEC*
• აუდიო არხების რაოდენობა: 7.1-channel
* მხარს უჭერს 24-bit/192 kHz-მდე დაკვრას
- Impedance sense for front and rear headphone outputs
- Internal audio Amplifier to enhance the highest quality sound for headphone and speakers
- Supports: Jack-detection, Multi-streaming, Front Panel Jack-retasking
- High quality 120 dB SNR stereo playback output and 113 dB SNR recording input (Line-in)
Audio Features
- Audio Shielding
- Rear optical S/PDIF out port
- Premium audio capacitors
- Dedicated audio PCB layers
- Audio Cover
* Due to limitations in HDA bandwidth, 32-Bit/192 kHz is not supported for 7.1 Surround Sound audio.
გარე ინტერფეისი
• 1 x USB 3.2 Gen 2x2 port (1 x USB Type-C®)
• 3 x USB 3.2 Gen 2 ports (2 x Type-A + 1 x USB Type-C®)
• 4 x USB 3.2 Gen 1 ports (4 x Type-A)
• 1 x DisplayPort
• 1 x HDMI® port
• 1 x Intel® 2.5Gb Ethernet port
• 5 x Audio jacks
• 1 x Optical S/PDIF out port
ბიოსი
• ბიოსი: 192 (128+64) Mb Flash ROM, UEFI AMI BIOS
• ASUS EZ DIY
• ASUS CrashFree BIOS 3
• ASUS EZ Flash 3
• ASUS UEFI BIOS EZ Mode
მართვადობა
• WOL by PME, PXE
ფიზიკური პარამეტრები
• ზომა: 30.5 x 24.4 მმ
• წონა: 1315 გრ
• წონა შეფუთვით: 1870 გრ
