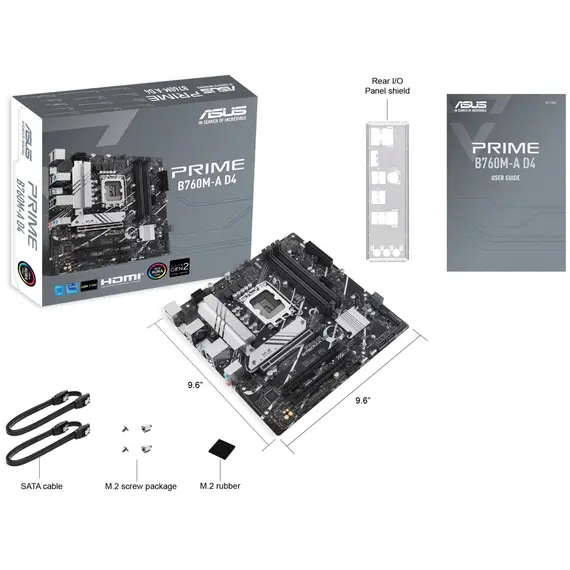

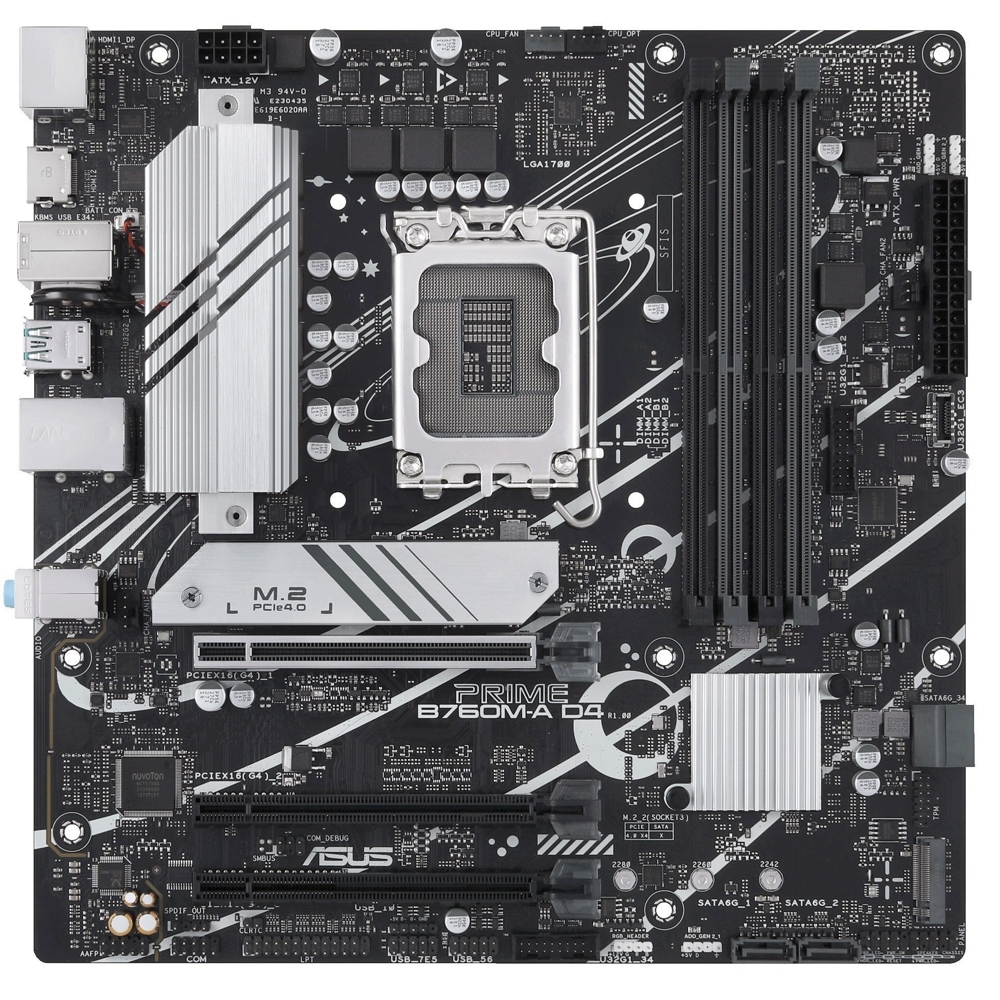

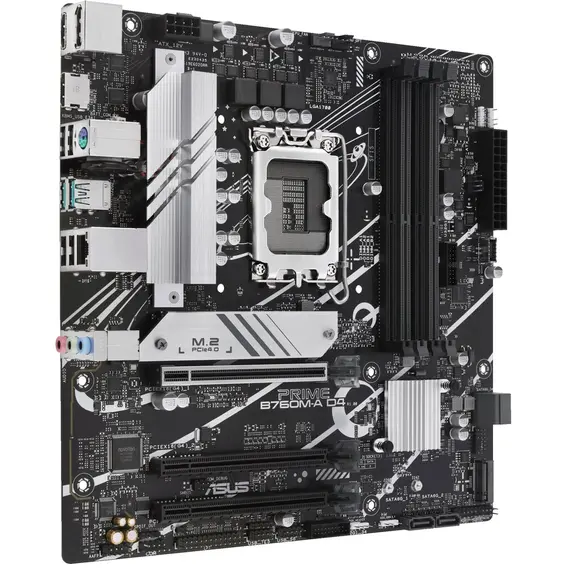

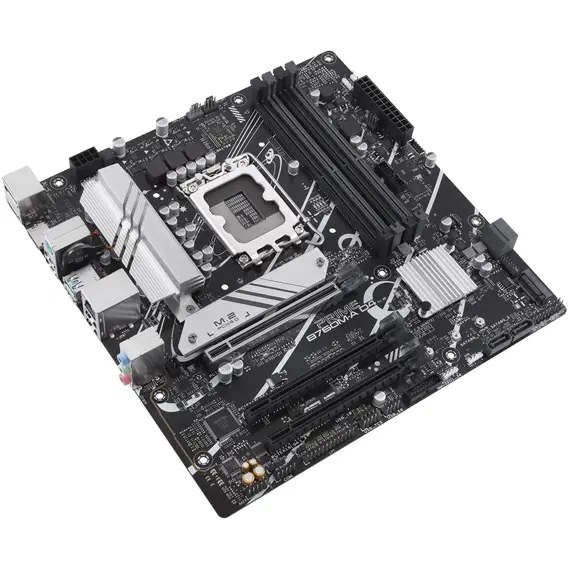

Motherboard Asus 90MB1D00-M1EAYC PRIME B760M-A D4-CSM, LGA 1700, DDR4, 128GB

The Asus PRIME B760M-A D4-CSM motherboard provides you with reliability and support for modern technologies, making it an ideal choice for the latest Intel processors. The LGA 1700 socket is fully compatible with 12th and 13th generation Intel Core processors, ensuring maximum performance. The Micro-ATX form factor helps to efficiently use space, and solid components ensure stable and long-lasting operation.

The board supports up to 128GB of DDR4 RAM at 5333MHz, making it ideal for building an energy-efficient and fast system. A PCIe 4.0 x16 slot and M.2 NVMe SSD ports allow you to use the latest graphics cards and high-speed storage devices.

The Asus PRIME B760M-A D4-CSM is equipped with exclusive technologies such as Asus 5X Protection III, which ensures system protection and long-lasting durability. Also, USB 3.2 Gen 1 ports for fast connectivity and Gigabit LAN network card offer maximum speed and stability.

Product Description :

• Brand: Asus
• Model: 90MB1D00-M1EAYC
• Product Type: Motherboard
• Purpose: For home/office
• Form factor: Micro-ATX
• Processor: For Intel processors
• Connection type: LGA1700
• Processor compatibility
• Intel Core 13th Generation
• Intel Core 12th Generation
• Chipset: Northbridge (chipset) Intel B760
• BIOS: UEFI
• UEFI BIOS: Yes
• RAM
• Type: DDR4
• DDR4: 4 slots
• Maximum clock frequency: 5333 MHz
• Maximum memory: 128 GB
• Graphics interface: PCI-E x16 4.0
• HDMI
• DP
• Interface
• SATA 3
• M.2
• SATA3 (6 Gb/s): 4 ports
• Network interfaces
• LAN (RJ-45): 2.5 Gbit/s
• Number of LAN ports: 1
• LAN controller model: Realtek
• Connecting connectors
• USB 2.0 7 ports (4 rear Type-A, 2 mid-port with 4 USB 2.0 ports, 1 second-port with 1 USB 2.0 port)
• USB 3.2 Gen 1 3/(2 front with support for 4 additional USB 3.2 Gen 1 ports, 1 front Type-C)
• USB 3.2 Type 2 2 /(and, Type-A)
• M.2 connector: 2
• Main power connector: 24+8-pin
• Size: 244x244 mm
