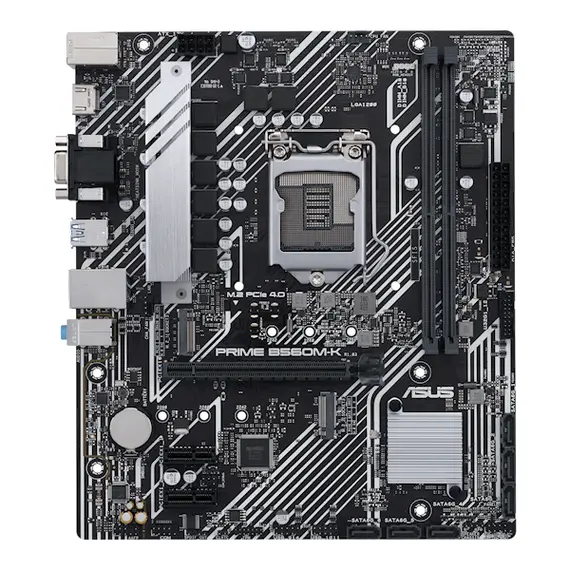

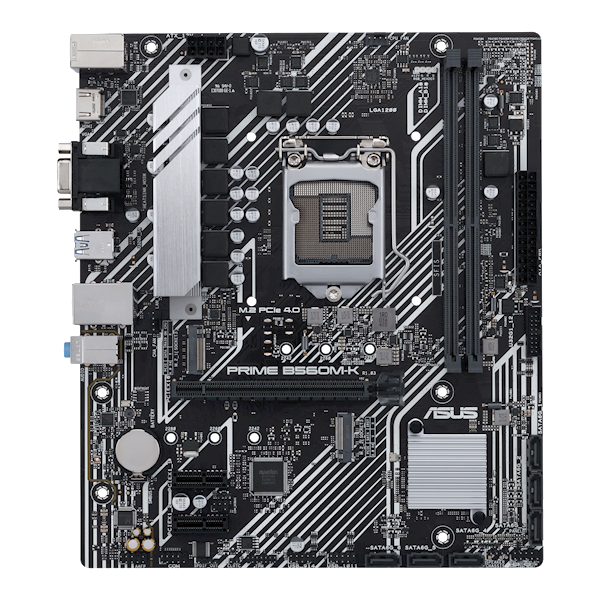

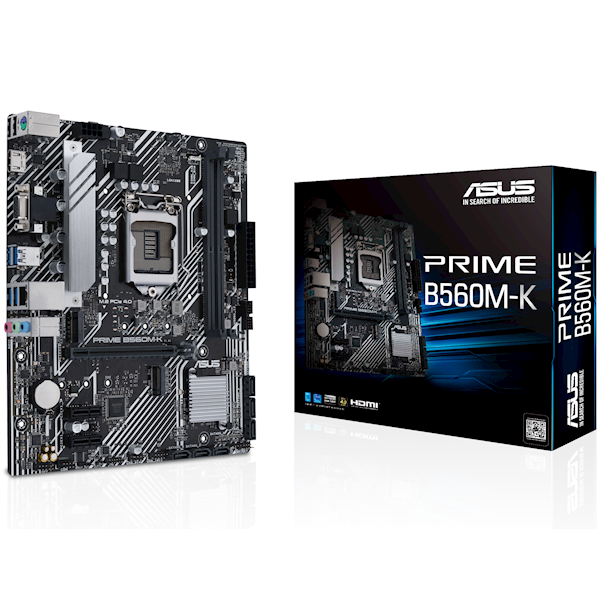

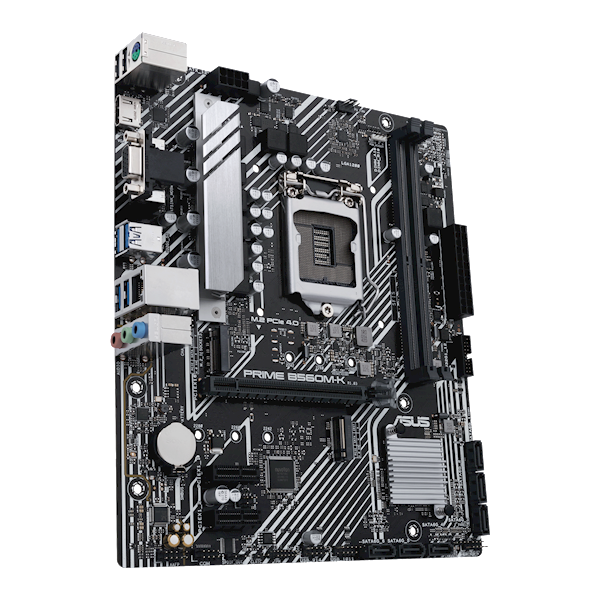

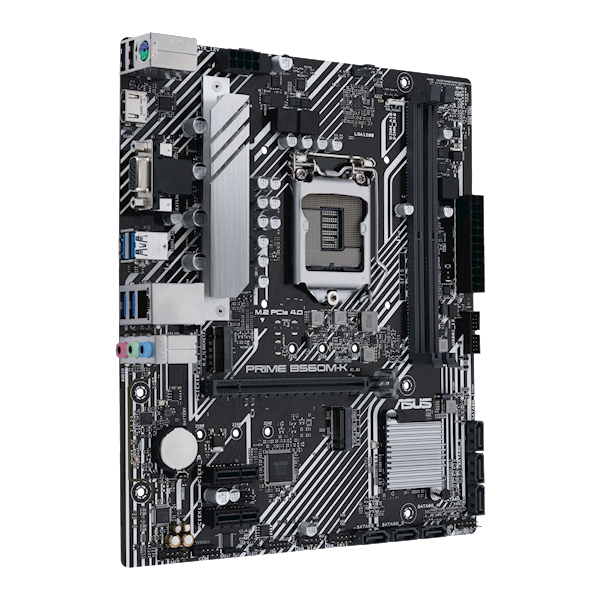

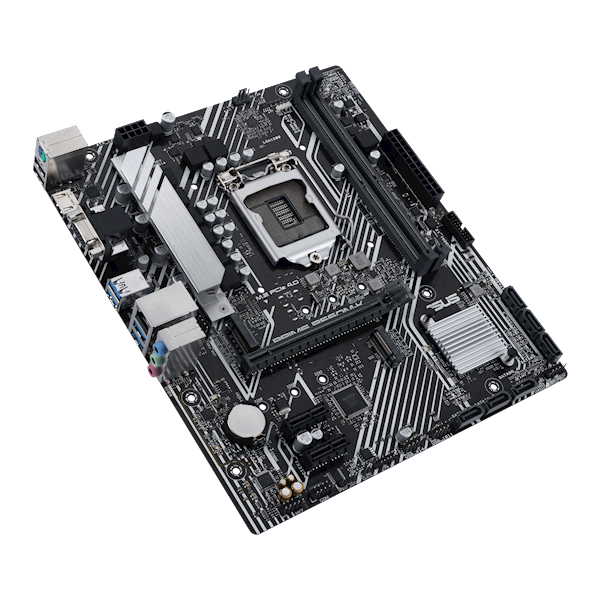

Motherboard ASUS PRIME B560M-K
Product Description :
• Processor Socket: LGA 1200
• Maximum memory support: 64 GB
• Chipset: Intel B560
• Memory type: DDR4
• Number of slots: 2
Frequency support
• 2133 MHz
• 2400 MHz
• 2666 MHz
• 2800 MHz
• 2933 MHz
Frequency Support (OC)
• 3200 (OC)
• 3333 (OC)
• 3466 (OC)
• 3600 (OC)
• 3733 (OC)
• 4000 (OC)
• 4266 (OC)
• 4400 (OC)
• 4600 (OC)
• 4800 (OC)
• 5000 (OC)
SATA controller
• PCI Express x16: 1
• PCI Express x1: 2
• SATA: 6
LAN: Intel® I219-V 1Gb Ethernet
• Number of audio channels: 7.1

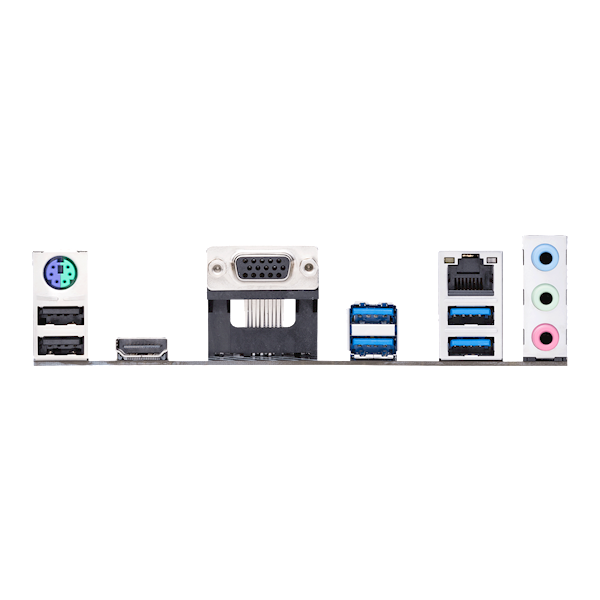

External interface
• PS / 2
• VGA
• HDMI
• Number of USB ports: 6
• USB 3.0 number: 4
• USB 2.0 number: 2
Internal interface
• USB 3.0
• USB 2.0
• TPM connector
• COM connector
• Processor Cooler Connector (4-pin)
• Case Cooler Connector (4-pin)
• S / PDIF output connector
• 24-pin (main power connector)
• 8-pin (processor power connector)
• Front panel audio connector (AAFP)
• System panel
• Clear CMOS connector
• M.2 Socket
Physical settings
• Size: 24.4 x 21.1 cm
• Form factor: mATX
