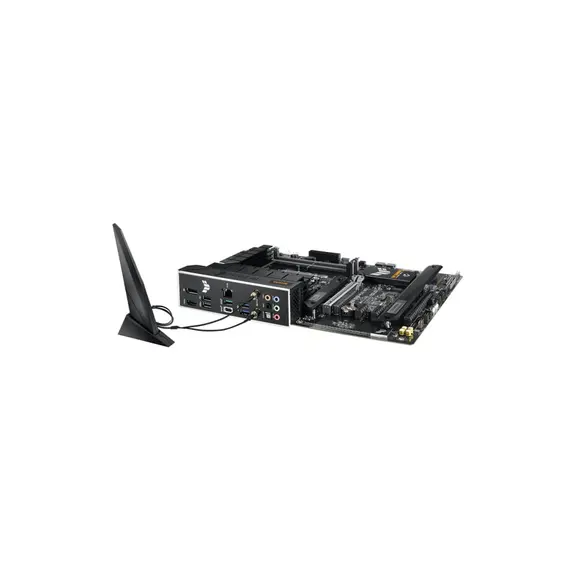

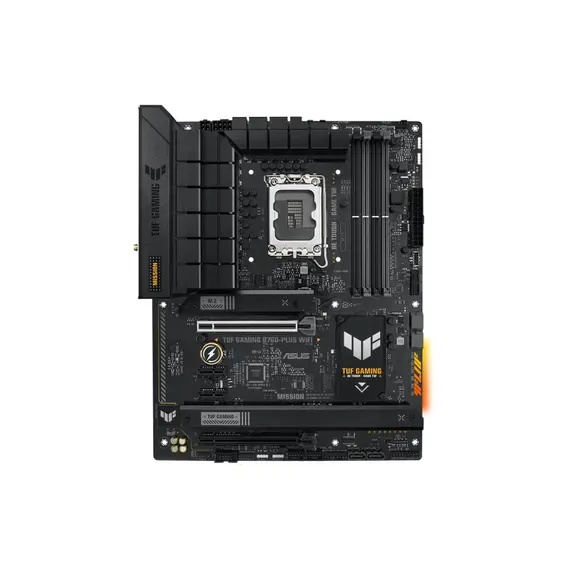

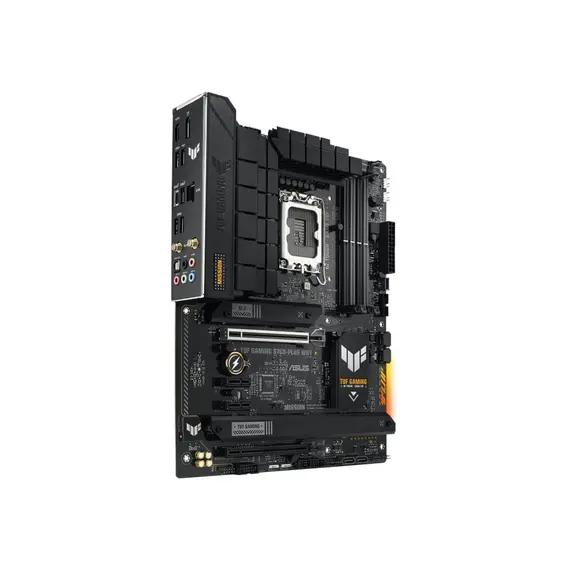

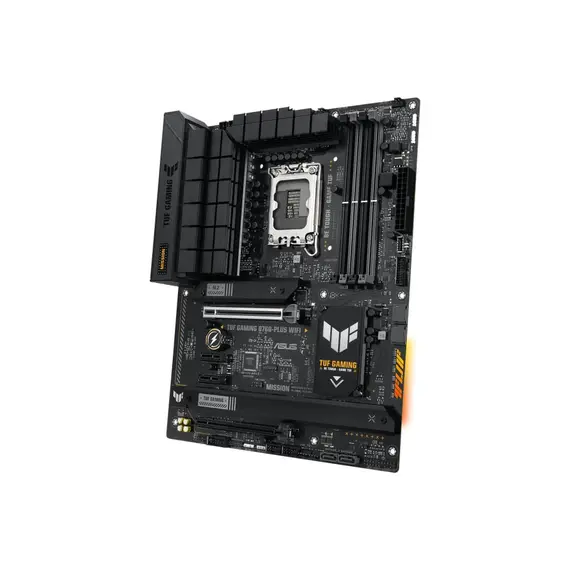

Motherboard Asus TUF Gaming B760-PLUS WIFI
The Asus TUF Gaming B760-PLUS WIFI is a powerful and reliable motherboard based on the Intel B760 chipset and optimized for gaming and high-performance systems. A 14+1 phase VRM design, ProCool connectors, and a powerful cooling system ensure stability and long-lasting durability. A PCIe 5.0 slot and DDR5 memory support provide maximum speed and future-proof expandability. Wi-Fi 6E and 2.5G Ethernet provide fast and stable network connections, ideal for online gaming and streaming. Aura Sync RGB lighting support, durable TUF components, and a multi-function BIOS system create the perfect base platform for any gaming PC.
Product Description :
- Brand: Asus
- Series: TUF Games
- Model/PN: TUF Gaming B760-PLUS WIFI
- Type: Motherboard
Features of the motherboard
- Compatible Processors: Intel Socket LGA1700 for Intel Core 14th & 13th Gen Processors, Intel Core 12th Gen, Pentium Gold and Celeron
- Motherboard type: ATX
- Socket: LGA1700
- Chipset: B760
- Memory type: DDR5
- Memory Slot Type: DIMM
- Memory MHz: 7200, 7000, 6800, 6600, 6400, 6200, 6000, 5800, 5600, 5400, 5200, 5000, 4800
- Number of memory slots: 4
- Maximum memory: 192 GB
- BIOS: 128 Mb Flash ROM, UEFI AMI BIOS
Additional sockets
- PCIe 5.0 x16: 1
- PCIe 3.0 x16 (x4 mode): 1
Information repository
- SATA 6Gb/s connectors: 4
- M2 Slot: 3
- RAID support: 0, 1, 5, 10
- Intel Rapid Storage Technology support: Yes
Network management device
- LAN controller: Realtek
- LAN speed: 2.5Gbs
Motherboard audio
- System: Realtek
- Number of audio channels: 7.1
- 32-Bit/192kHz playback: 24-Bit/192 kHz
Rear I/O ports
- USB 2.0: 1
- USB 3.2: 4
- USB Type-C: 1
- HDMI:1
- DisplayPort: 1
- LAN (RJ45): 1x 2.5Gb
- Audio jacks: 5
- Optical S/PDIF out: 1
Internal I/O ports
- USB 2.0: 2
- USB 3.2: 2
- USB Type-C: 1
- M.2 connector socket 3 for M button: 3
- SATA 6Gb/s connectors: 4
- 24-pin connector with power supply: 1
- 4-pin connector to power supply: 1
- 8-pin connector with power supply: 1
- CPU cooler connector: 1
- CPU OPT cooler connector: 1
- Chassis cooler connector: 3
- Front audio connector: 1
- System panel: 1 x 20-3 pin
- Thunderbolt header: 1
- CMOS-memory clearing button: 1
- 3-pin ARGB: 1
Dimensions
- Dimensions (height x width x depth): 30.5 x 24.4 cm cm
