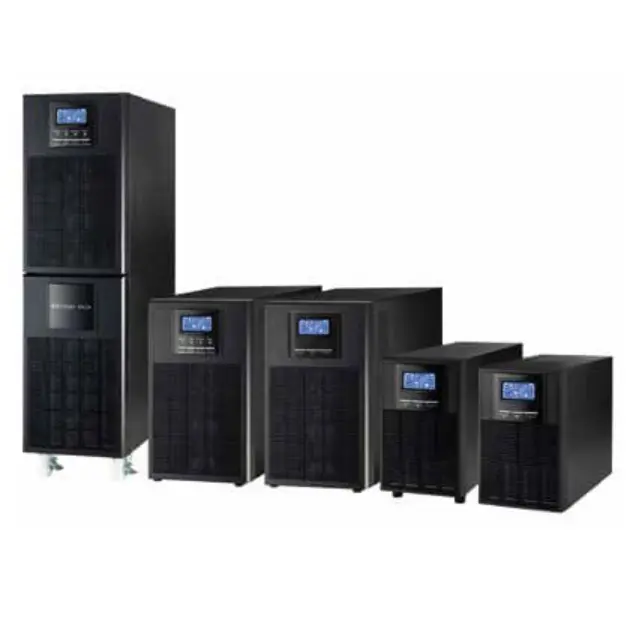

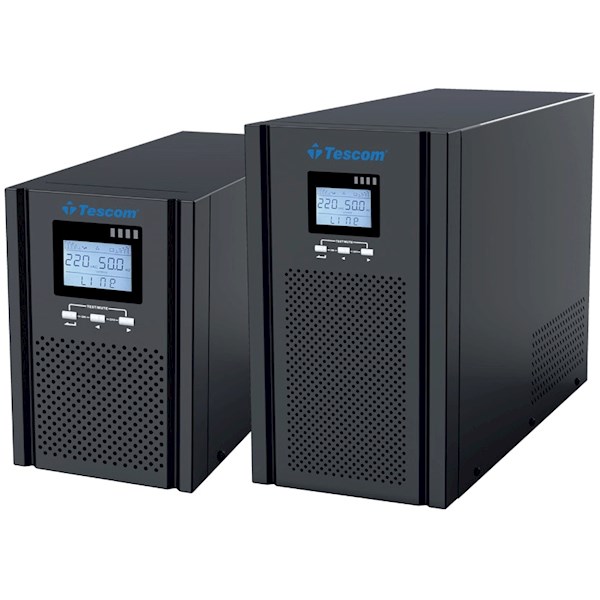

Power supply Tescom TEOS 3000 series 3kVA On-line UPS

Product description :

• Brand: Tescom
• Model: TE103
• Power: 3 kVA/2700 W

Content :

• Nominal voltage: 208 / 220 / 230 / 240 Vac
• Frequency: 40 ~ 70 Hz (automatic sensing)
• Power factor: ≥ 0.99

Output :

• Voltage 208 / 220 / 230 / 240 Vac (setting with LCD)
• Voltage regulation: ± 1%
• Frequency: 45 ~ 55 Hz or 55 ~ 65 Hz (synchronized range);
• 50 / 60 Hz ± 0.1 Hz (battery mode)
• Waveform: Sinusoidal
• Power factor: 0.9
• Recharge: 105% ~ 125% 1 min,
• 125% ~ 150% 30 s,
• > 150% 300 ms

Batteries :

• DC voltage: 72V (S)
• Built-in battery: 6x9Ah
• Charging current (max.): 1A
• Charging time:
• Standard model: 90% power is restored in 3 hours;
• Long-lasting model: depends on battery capacity

Efficiency :

• ≥ 92% (network mode)
• ≥ 87% (battery mode)
• ≥ 97% (eco mode)
• Transfer time: Network mode Battery mode: 0 ms
• Inverter mode: 4 ms (typical)
• Communications: RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
• Screen: LCD + LED
• Noise level at 1 m: ≤ 50 dB

Contact information :

• Tel: 0322 123 434;
• E-mail: Sales@primestore.ge;
• The product can be ordered through the website and by phone.
• Please contact us in advance to check stock before purchasing.

Delivery is carried out throughout Georgia :

• Tbilisi: in 1 to 2 working days
• Regions: 2 to 4 working days
