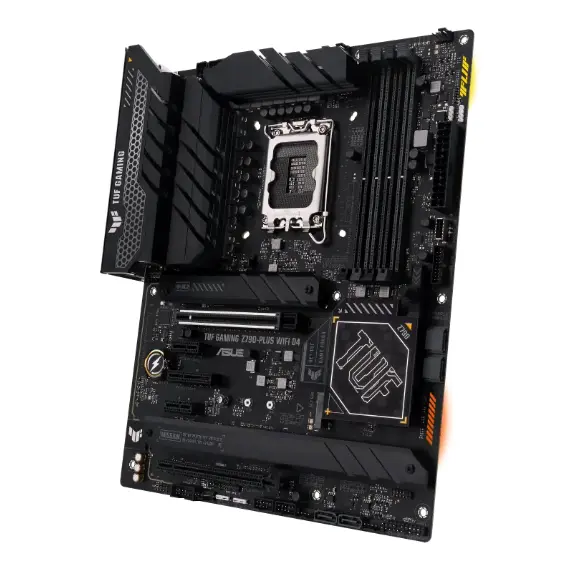

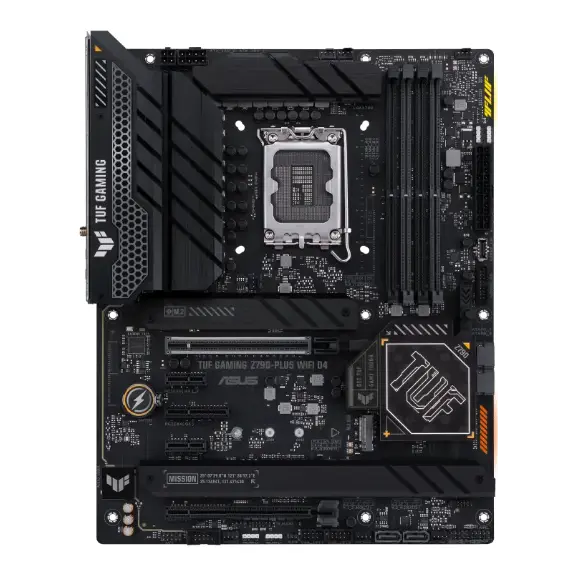

Motherboard ASUS TUF GAMING Z790-PLUS WIFI s1700 Z790 4xDDR5 M.2 HDMI DP Wi-Fi BT ATX

Product description :

• Brand: ASUS
• Model: 90MB1D80-M1EAY0

Main features

• Chipset manufacturer: INTEL
• Form/FORM FACTOR: ATX
• Compatible processors: 13TH GEN INTEL® CORE™ PROCESSORS & 12TH GEN INTEL® CORE™, PENTIUM® GOLD AND CELERON® PROCESSORS* SUPPORTS INTEL® TURBO BOOST TECHNOLOGY 2.0 AND INTEL® TURBO BOOST MAX TECHNOLOGY 3.0
• Processor socket (SOCKET): LGA1700
• Chipset (NORTH BRIDGE): Z790
• RAM slots: 4
• Maximum RAM: 128 GB
• RAM frequency: 3200/3000/2933/2800/2666/2400/2133 MHZ
• Frequency support (OC): 5333(OC)/5133(OC)/5066(OC)/5000(OC)/4800(OC)/4700(OC)/4600(OC)/4500(OC)/4400(OC) /4266(OC)/4133(OC)/4000(OC)
• SLI Support: No
• CROSSFIRE SUPPORT: No
• PCIE Bandwidth: 1 X PCIE 4.0 X4 SLOT, 2 X PCIE 3.0 X1 SLOTS
• PCIE X16 Quantity: 1 X PCIE 4.0 X16 SLOT (SUPPORTS X4 MODE)

Connection facilities

• Connectivity: 1 X INTEL® 2.5GB ETHERNET, TUF LANGUARD

Types and number of ports

• USB PORTS ON BACK PANEL: 1 X USB 3.2 GEN 2X2 PORT (1 X USB TYPE-C®), 3 X USB 3.2 GEN 2 PORTS (2 X TYPE-A + 1 X USB TYPE-C®), 4 X USB 3.2 GEN 1 PORTS (4 X TYPE-A)
• Graphics ports: 1 X DISPLAYPORT, 1 X HDMI® PORT
• Ports on the back: 1 X WI-FI MODULE, 1 X INTEL® 2.5GB ETHERNET PORT, 5 X AUDIO JACKS, 1 X OPTICAL S/PDIF OUT PORT
• Hard Drive Ports and Slots: 4 X M.2 SLOTS (KEY M), 4 X SATA 6GB/S PORTS
• Power connectors: 1 X 24-PIN MAIN POWER CONNECTOR, 1 X 8-PIN +12V POWER CONNECTOR, 1 X 4-PIN +12V POWER CONNECTOR

physical characteristics

• Color: Black
• Size: 30.5 CM X 24.4 CM
